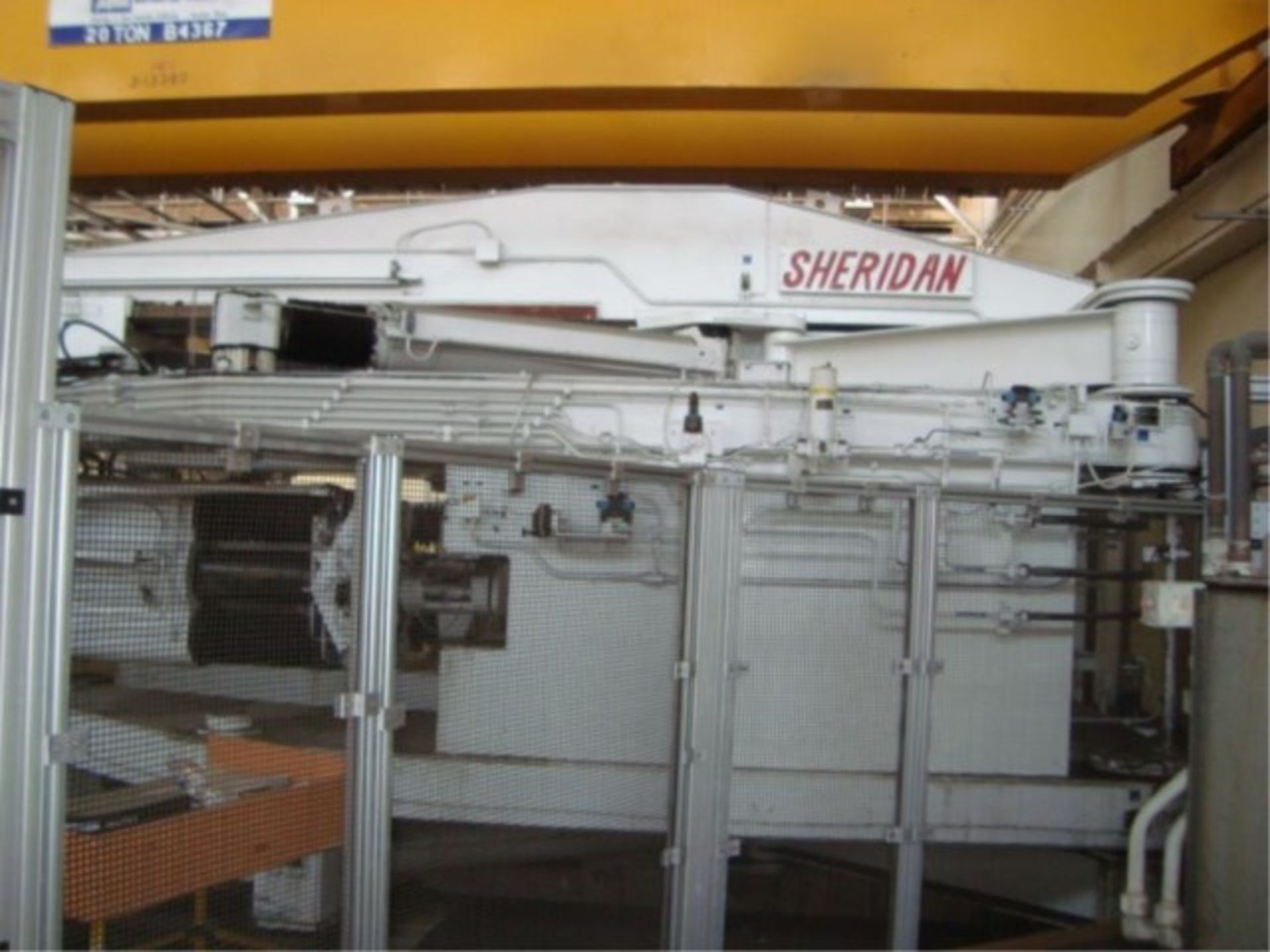

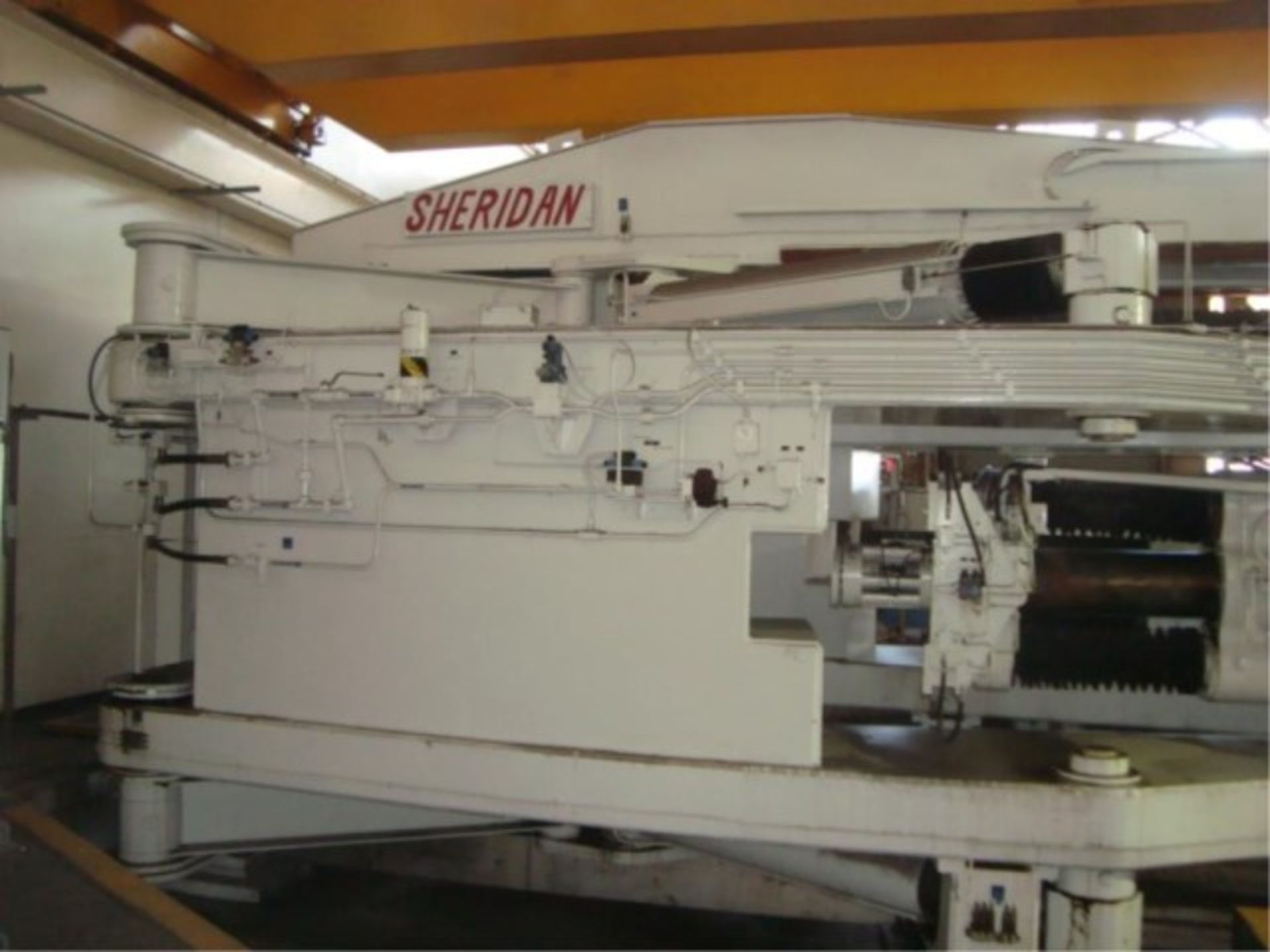

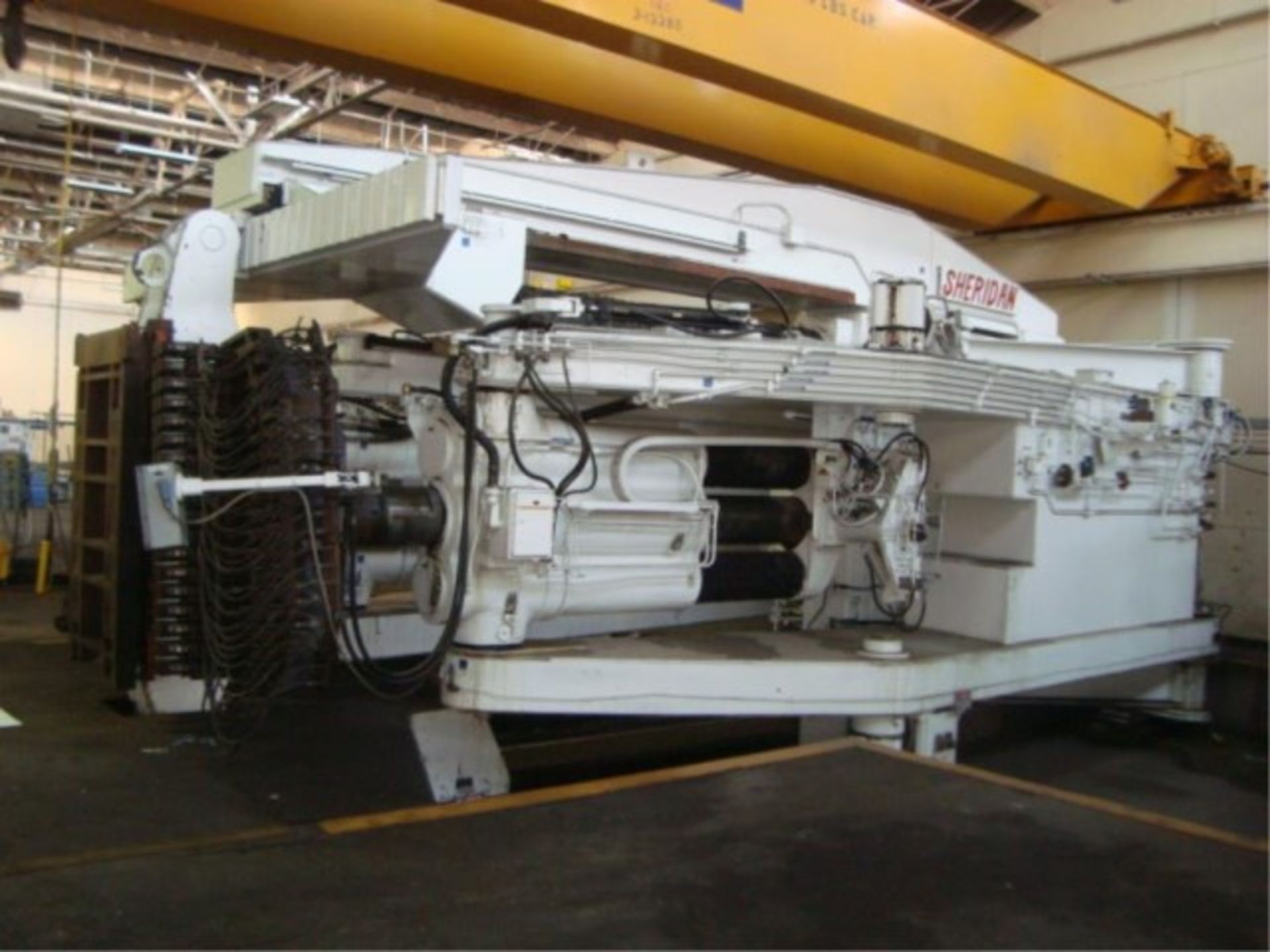

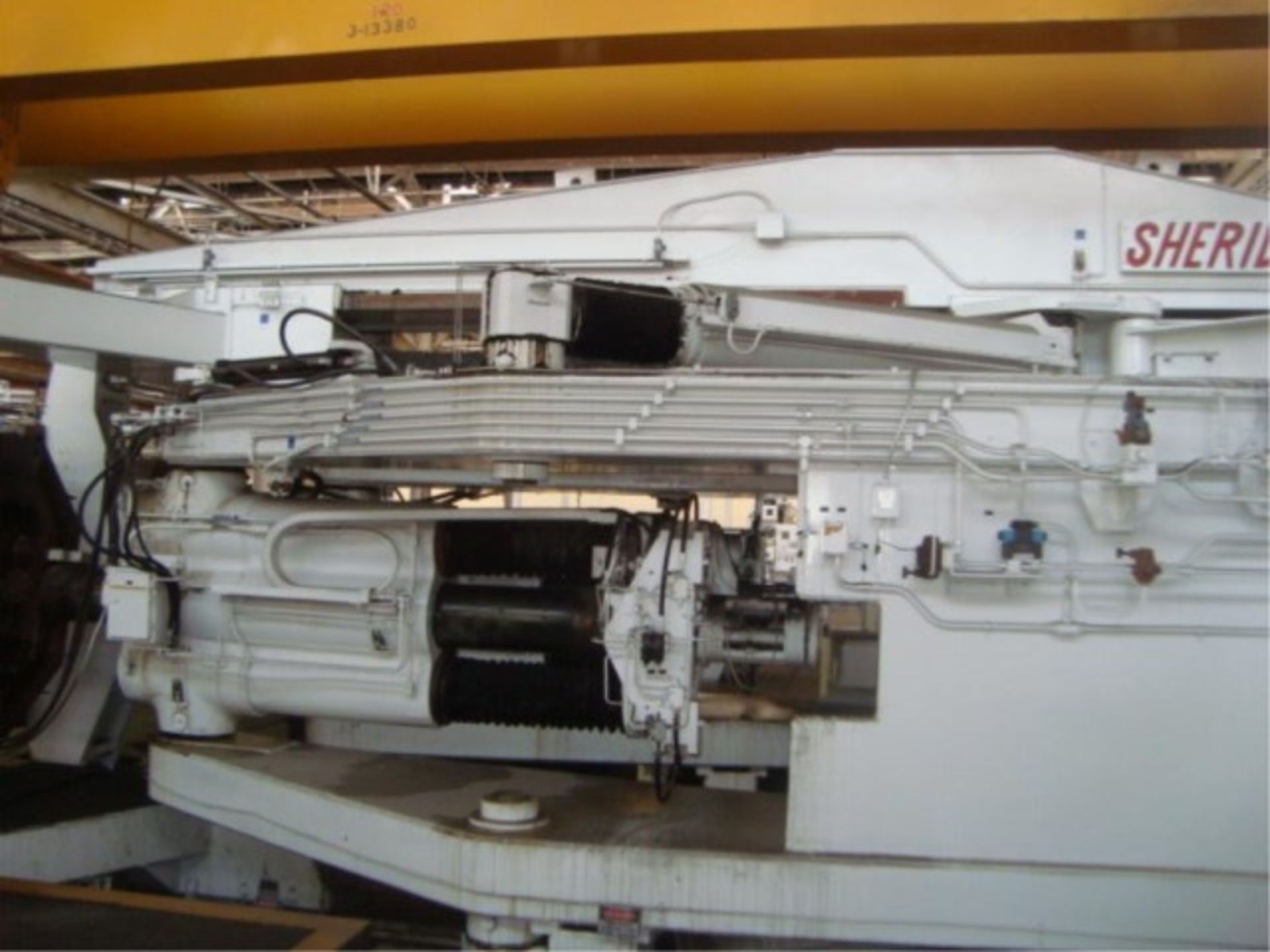

Sheridan TC-L300/90-R CNC Stretch Forming Press Machine

Price: $ 2,200,000.00

Description

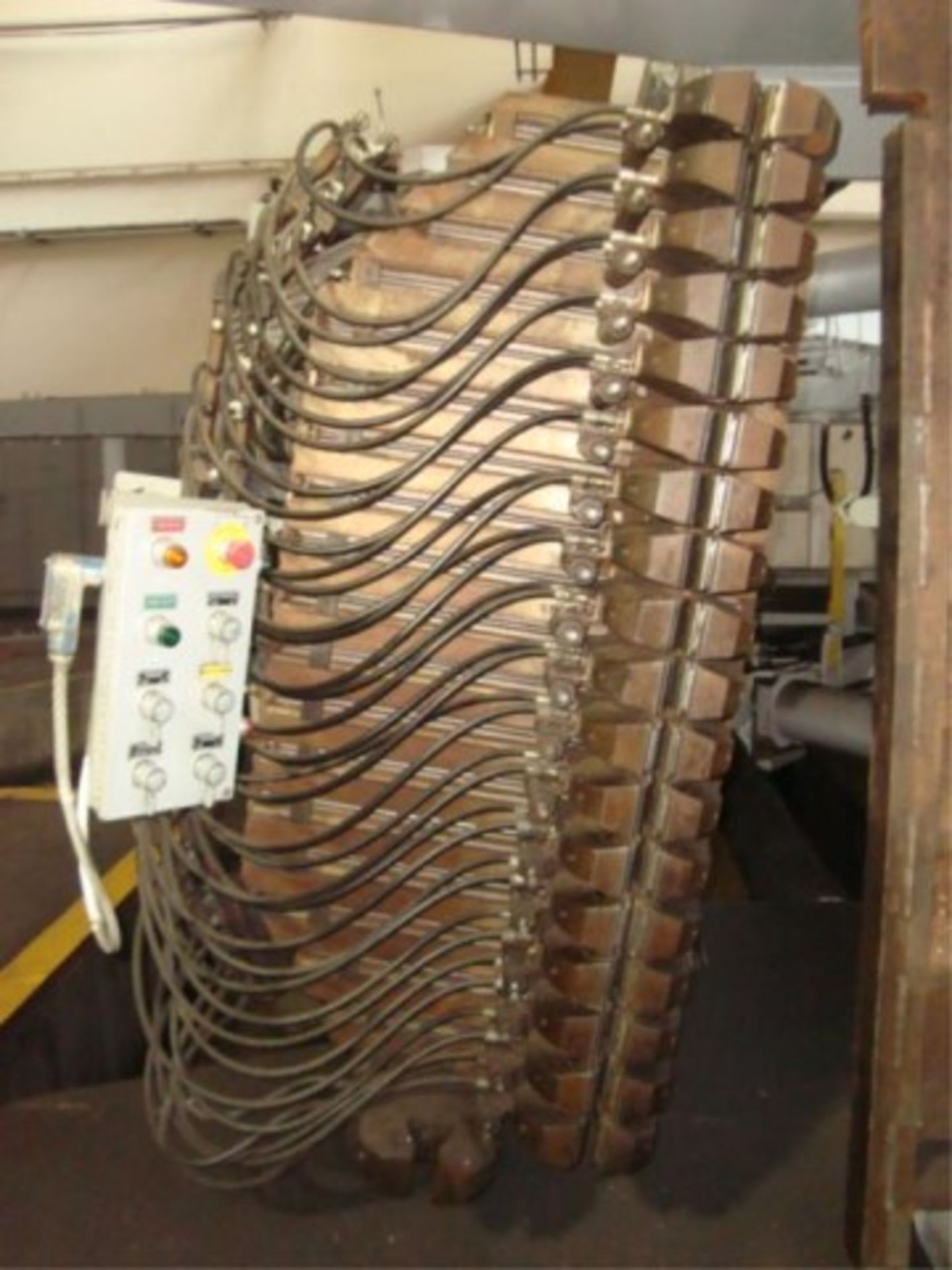

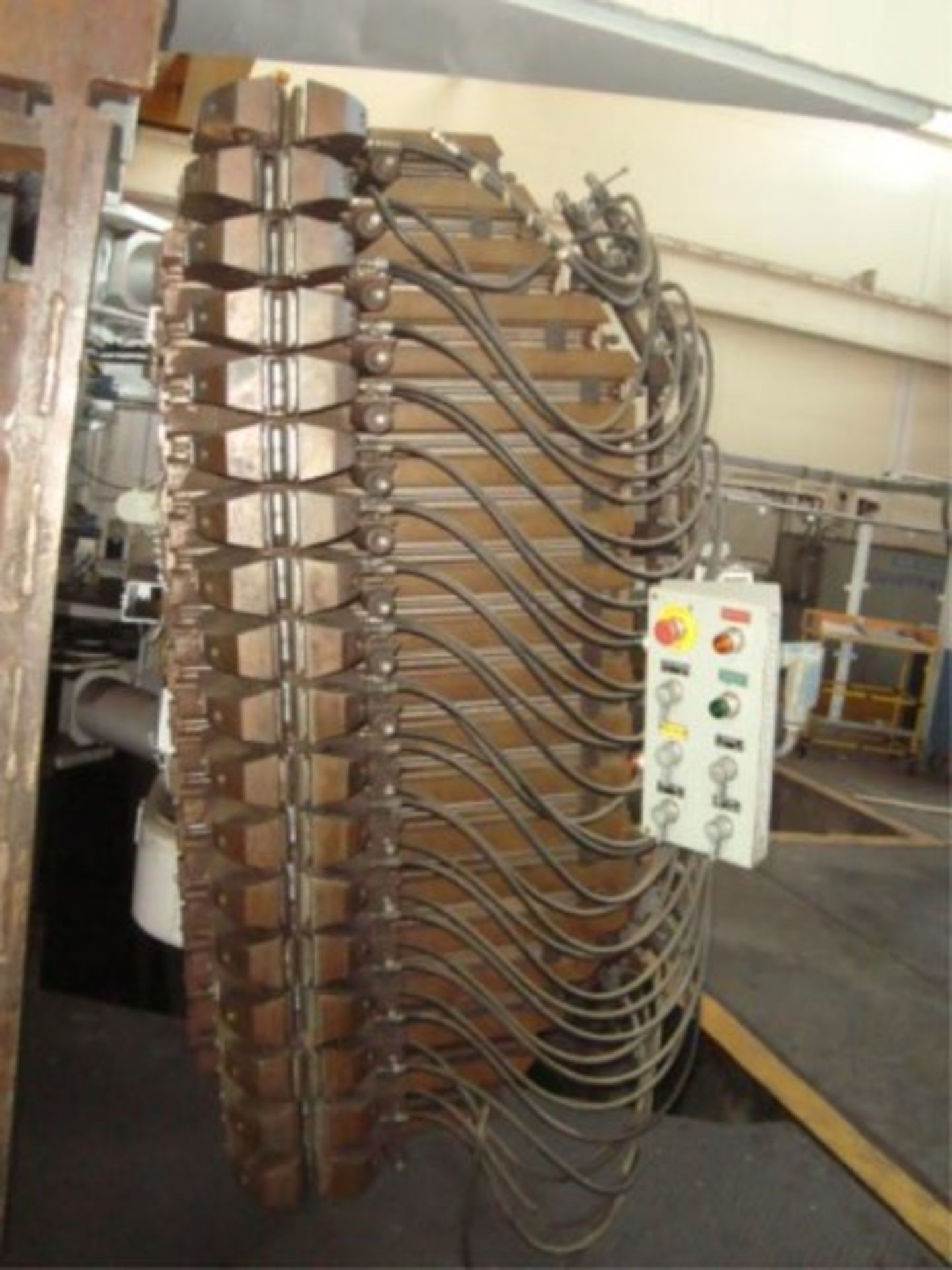

Sheridan TC-L300/90-R CNC Stretch Forming Press Machine With DeMott Model 3423 CNC Controller Refurbishment, 18-Jaw Grips On Left & Right Side Rams, Longitudinal Sheet Jaws: 90 To Capacity, Tension Cylinder Position Speed:.1 - 20 ipm, Tension Cylinder Forming Speed:.1 - 15 ipm, Tension Cylinder Stroke: 20" inches, Swing: 0 to 70 degrees, Distance Between Jaws: (Max With Jaws Horizontal) 460" inches, Maximum Jaw Opening: 1" inch. Transverse Sheet Jaw: 150 Ton Capacity, Swing: 0 to 90 degrees, Distance Between Jaws: (Max With Jaws Horizontal) 460" inches, Maximum Sheet Width: Maximum Jaw Opening: 1" inch. Die Table: 300 Ton Capacity, Positioning Speed:.1 to 30 ipm, Forming Speed:.1 to 18 ipm, 54" in. Stroke, Width: 18" inches, Width With Extension: 54" inches, Length: 98" inches, Tile Max. +/- 15 degrees. Includes Hydraulic System & System Power Panels.
