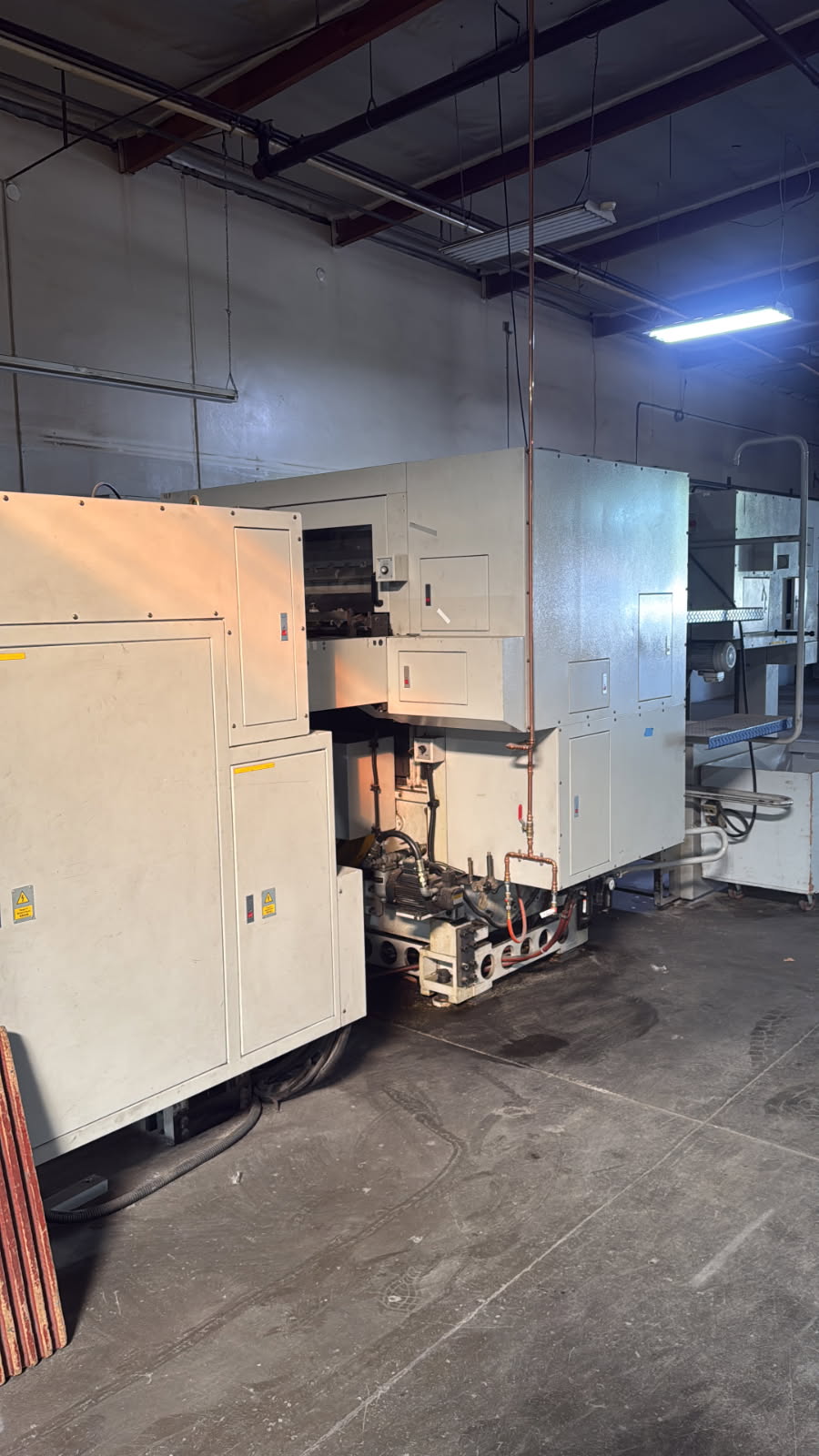

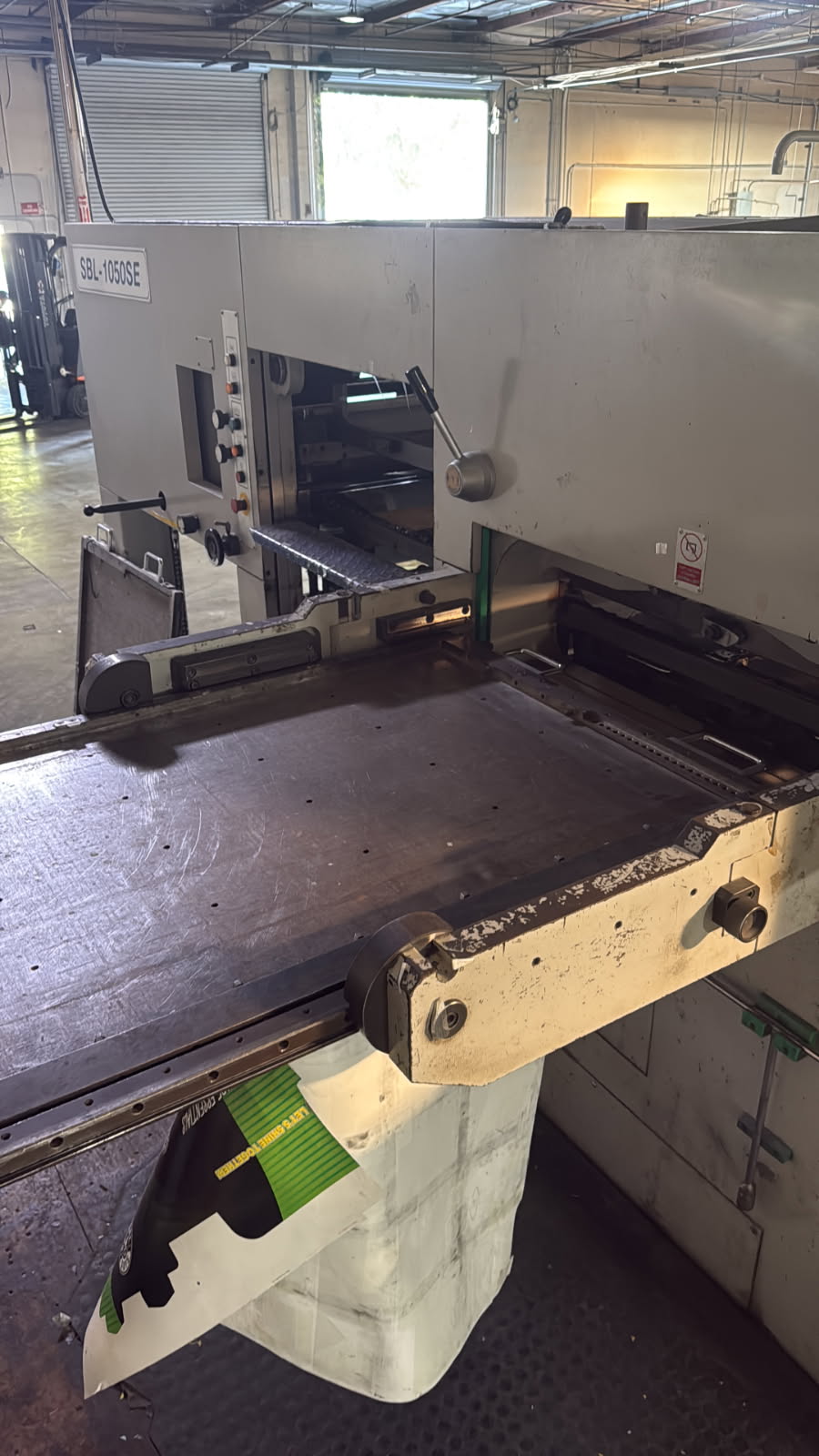

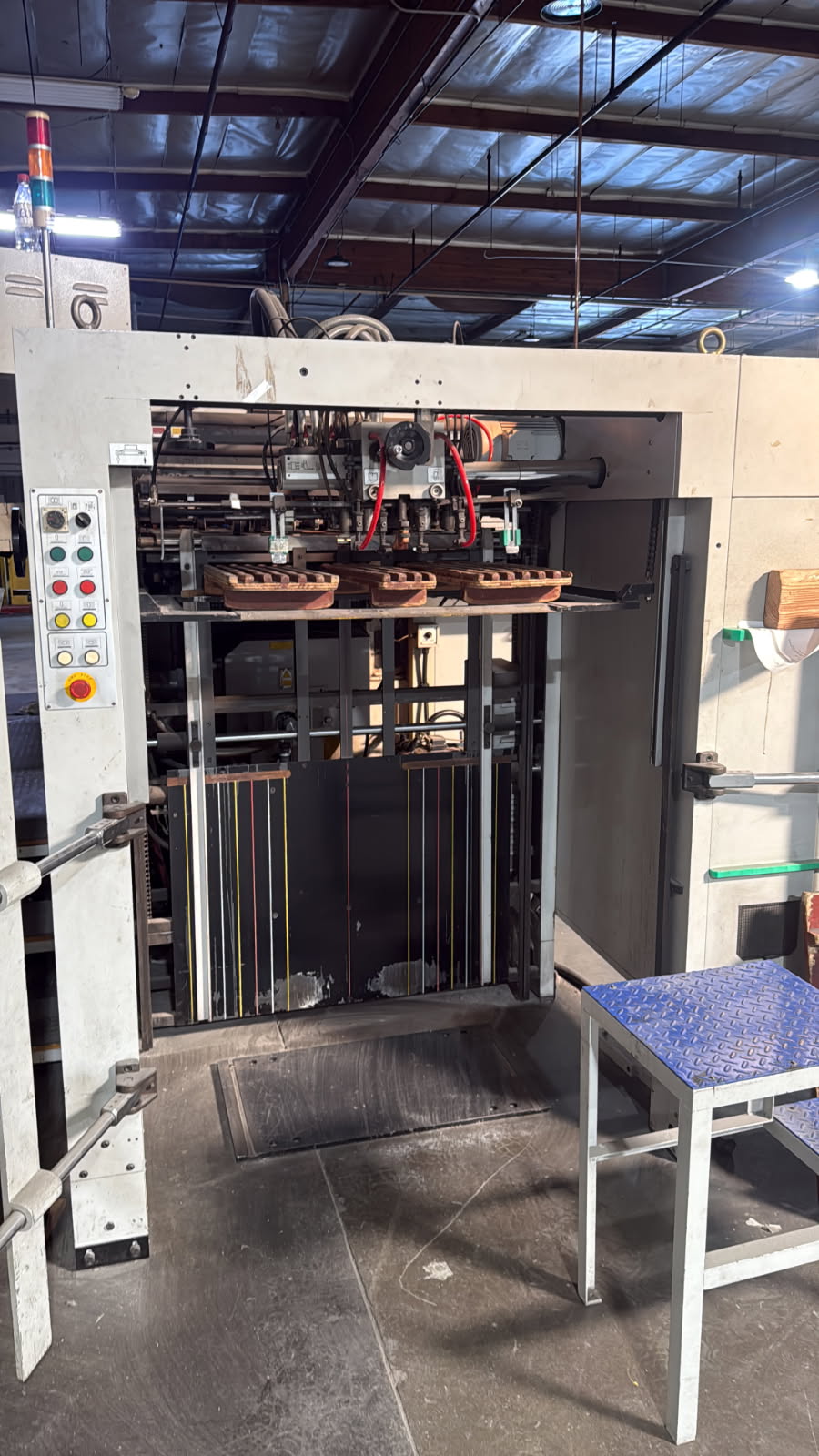

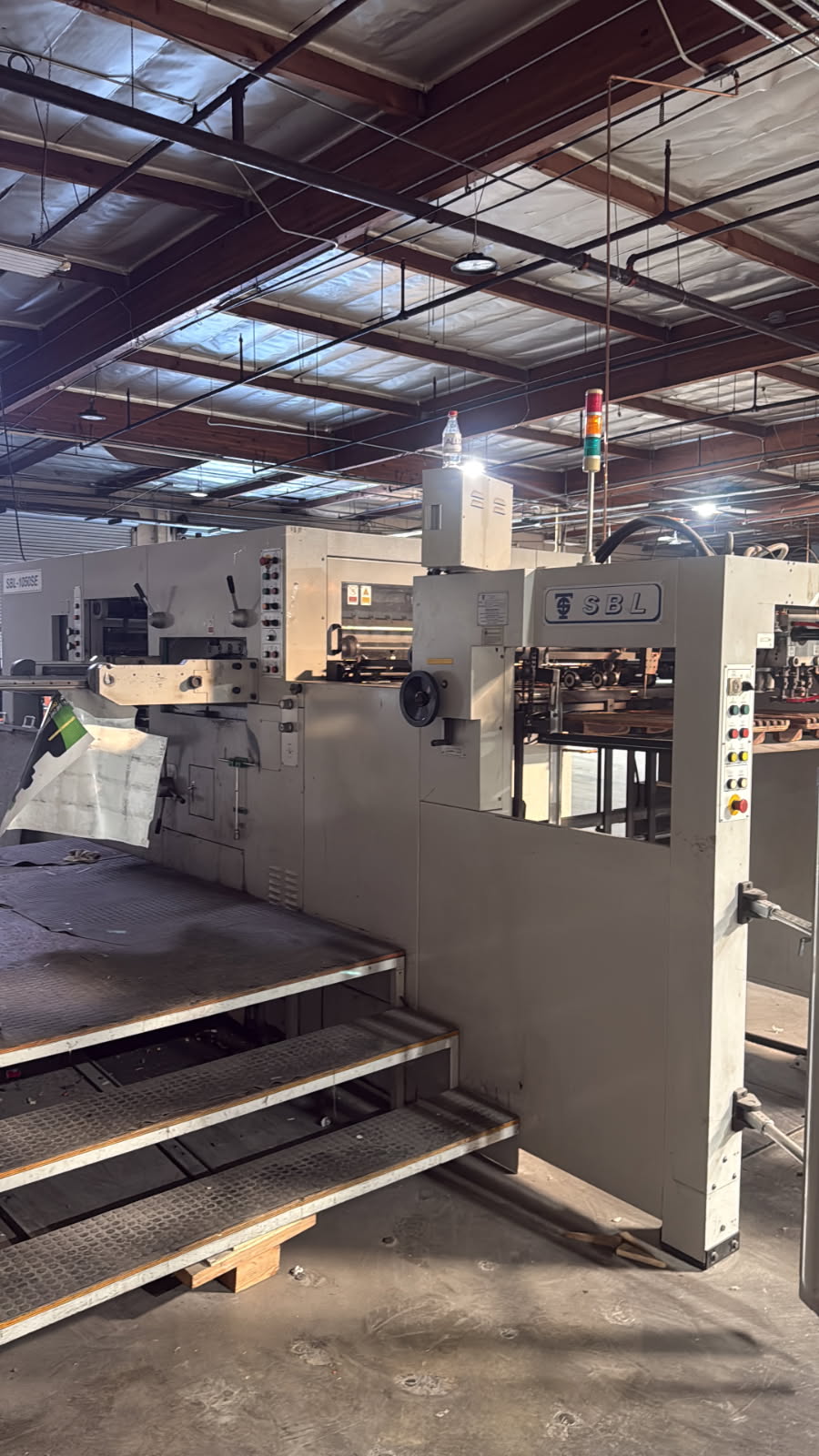

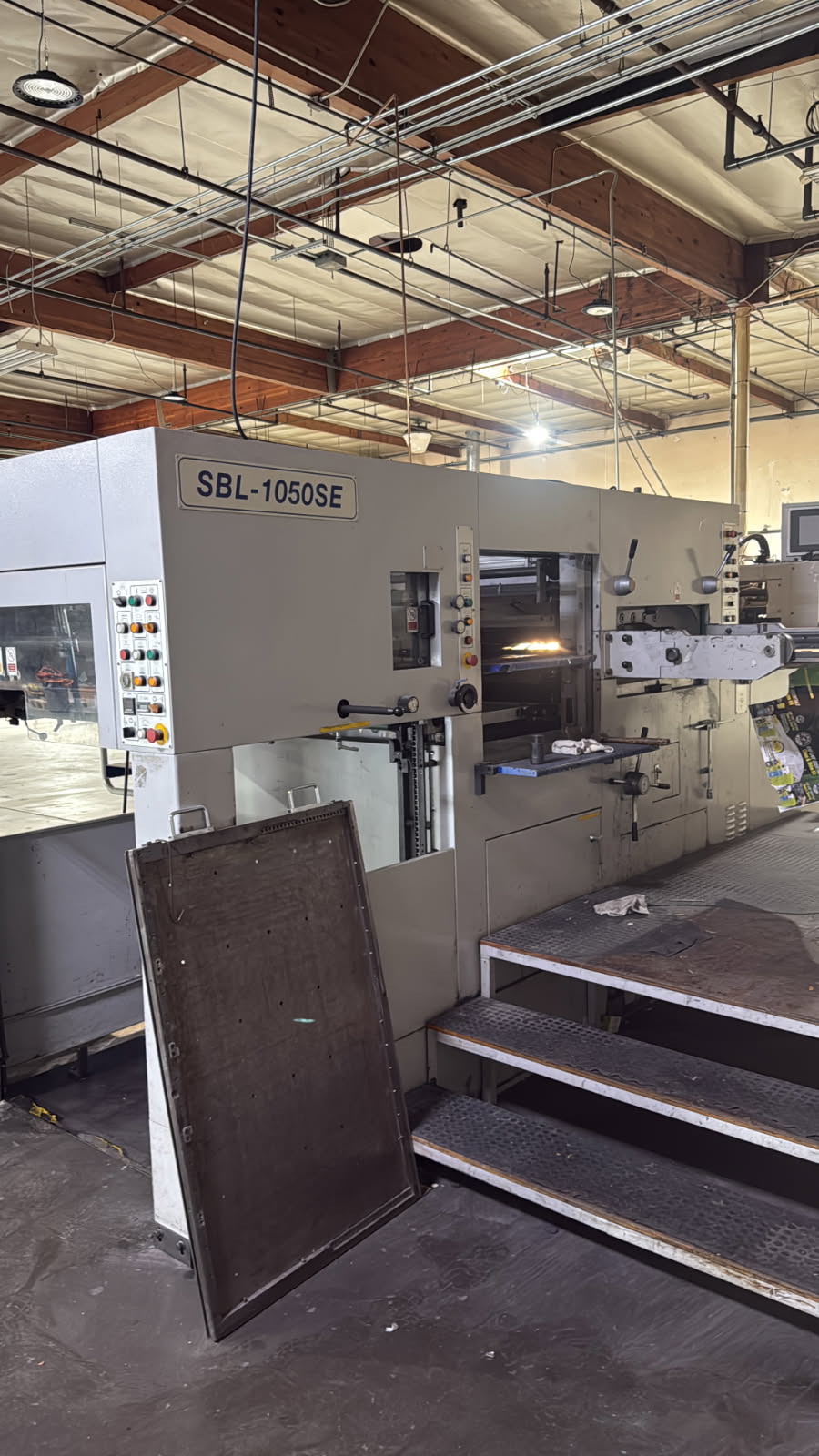

SBL-1050 SE DIE CUTTER AND STRIPPING MACHINE

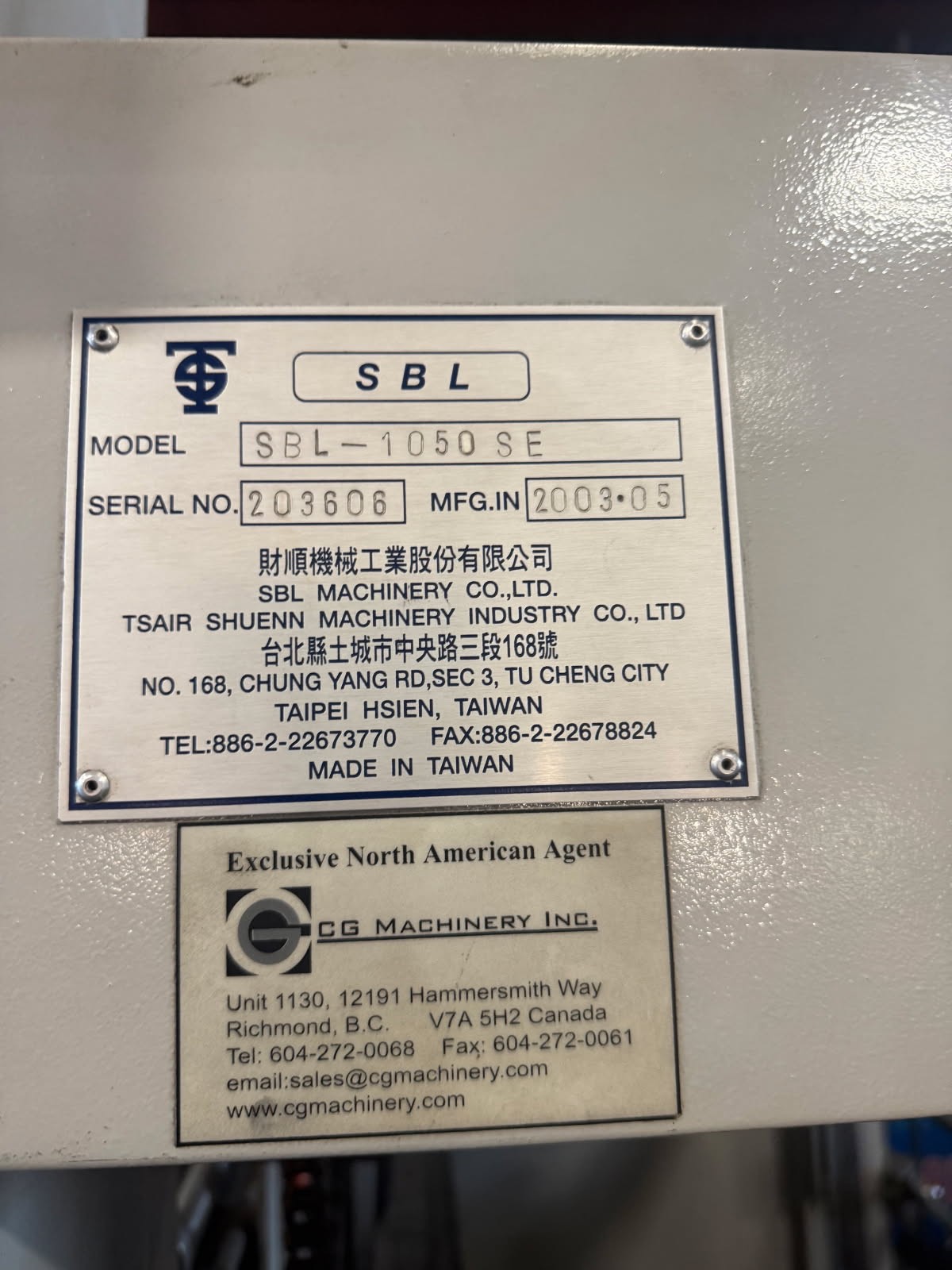

Model SBL-1050SE​

Automatic Platen Die Cutting and Creasing

Max. paper size:                1050 x 750 mm

Min. paper size: 400 x 370 mm

Max. die-cutting paper size: 1040 x 730 mm

Min. gripper margin:        9.5mm

Die-cutting force:             300 Tons

Inner size of die chase:  1144 x 760 mm

Cutting plate size:            1080 x 736 mm

Range of material thickness:       0.1mm~2mm (80~1400gsm)

Corrugated paper: ≦4mm

Height of cutting rules:  23.6mm

Max. punching speed:    7500S/H

Register tolerance:          ±0.075mm

Total power:        20KVA

Outer size of machine(mm):        5683L × 2204W × 2132H

Machine weight (approx.)              : 16 Tons

Feeder pile height with pallet:    1000mm

Feeder pile height with pallet

(without non-stop):          1200mm

Delivery pile height:        840mm

Feeder pile height with 300mm elevation

(option) 1500mm

Version V.02

Small sheet device

(option) 350mm x300mm

Gripper bite(minimum)  3mm
