Product Detail

  • Hufford A-5 Extrusion Stretch Forming Press
  • Hufford A-5 Extrusion Stretch Forming Press
  • Hufford A-5 Extrusion Stretch Forming Press
  • Hufford A-5 Extrusion Stretch Forming Press
  • Hufford A-5 Extrusion Stretch Forming Press
  • Hufford A-5 Extrusion Stretch Forming Press

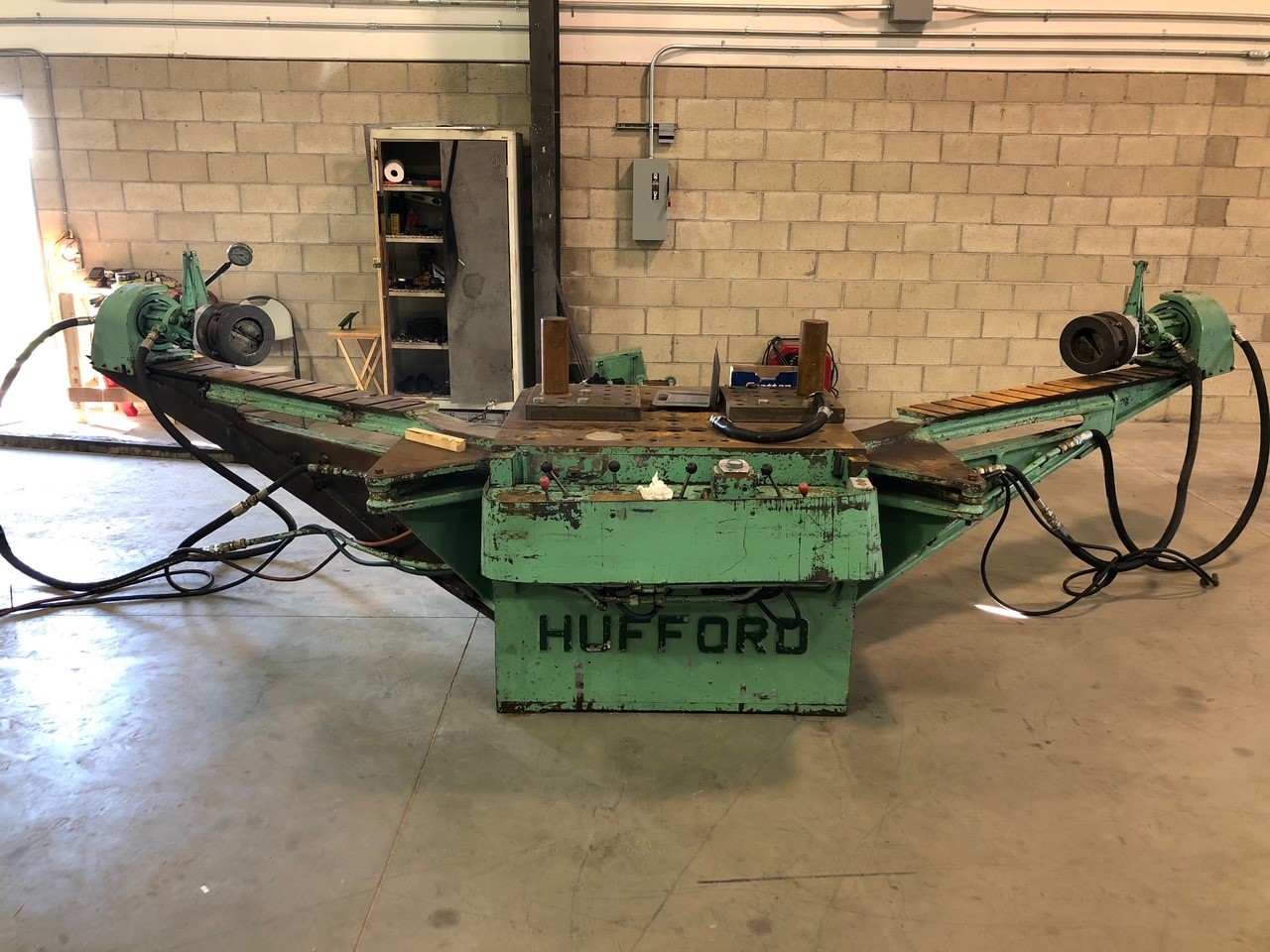

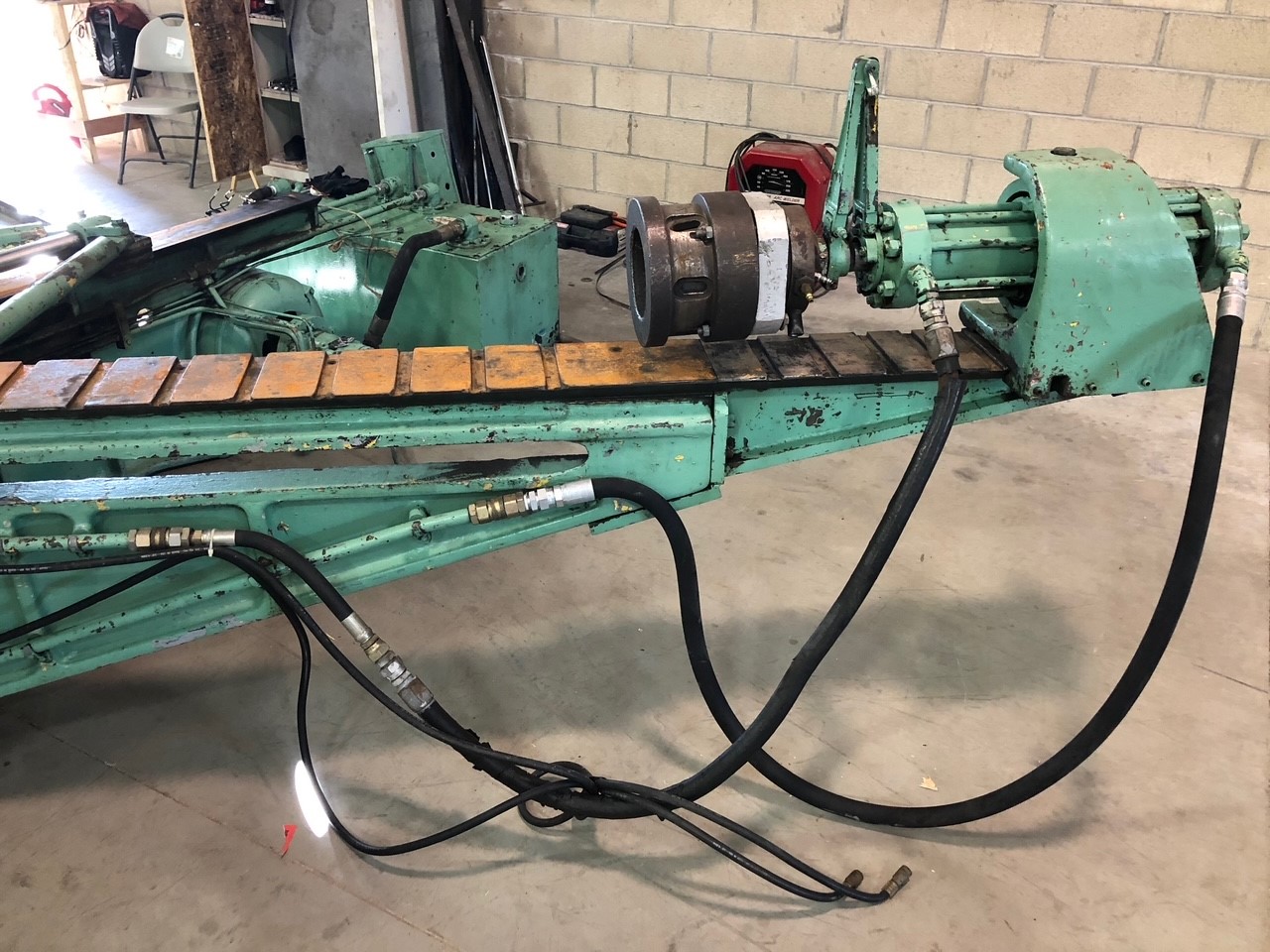

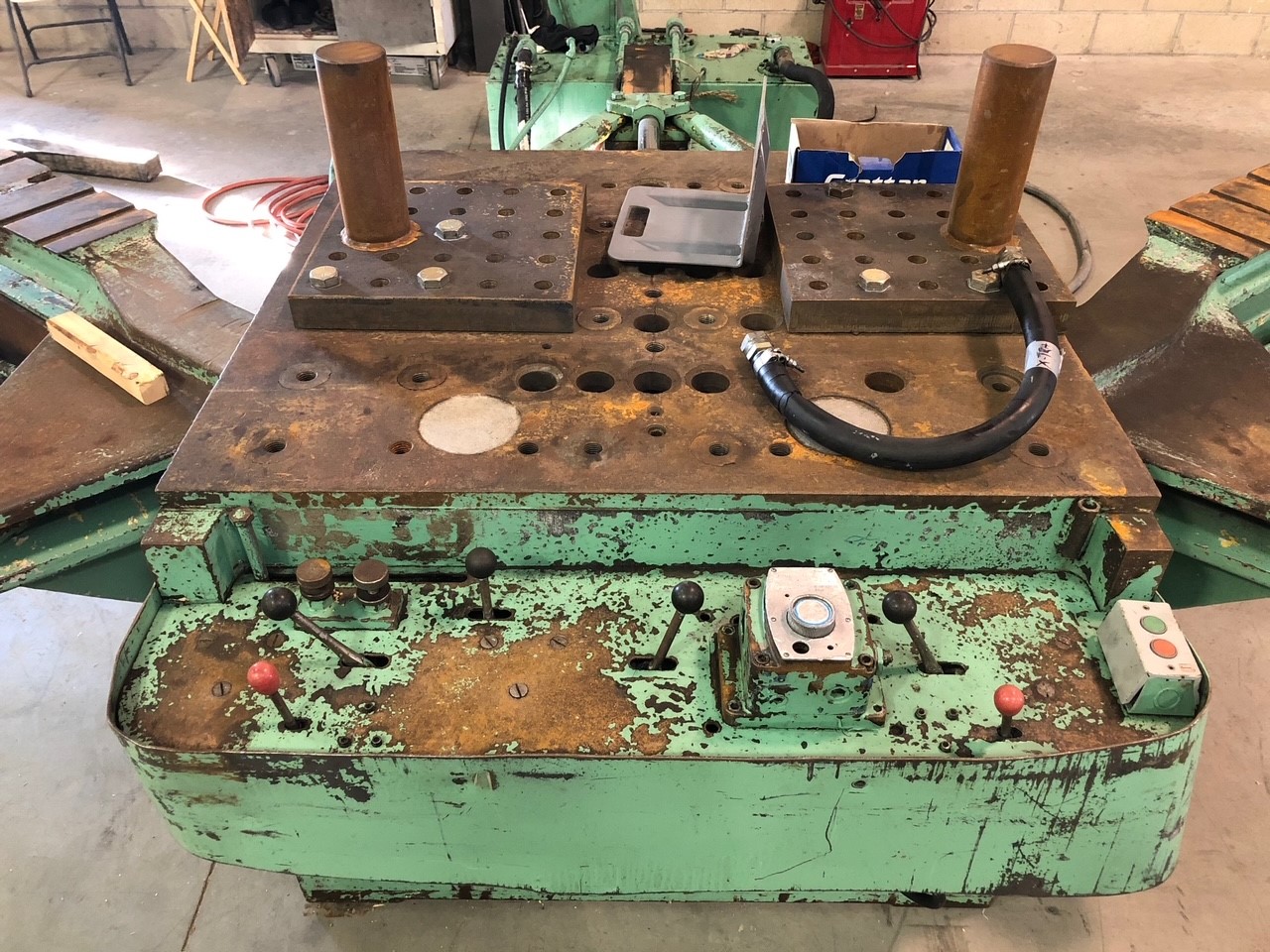

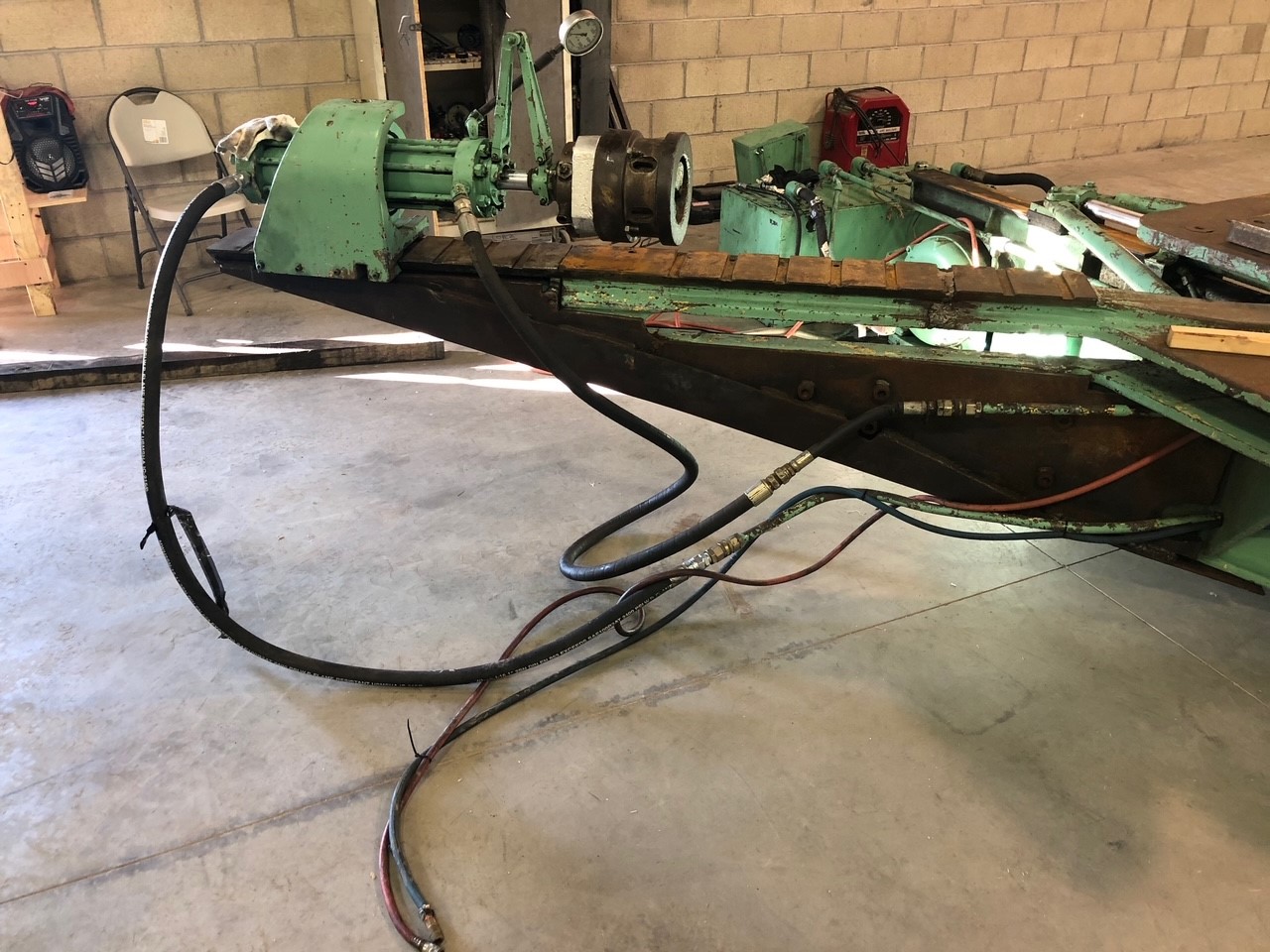

Hufford A-5 Extrusion Stretch Forming Press

Price: $ 79,500.00

Description

Hufford A-5 Extrusion Stretch Forming Press

Long Arm Machine

Capacity 12.5 Tons Table Dimensions 30” x 65”

Table Height 35.5”

Maximum Part Length Formed 219”

Minimum Part Length Formed 10”

Maximum Sheet Width Formed 10”

Maximum Die Height 20”

Maximum Die Length @ 180 Deg. 68”

Minimum Die Length @ 180 Deg.

20” Tension Cylinder Stroke 18.5”

Operating Pressure Maximum 2,000 PSI

Overall Floor Space Required 23’ 6” x 14’11” F-B Overall Height 4’ 7”

Approximate Weight 14,000 lbs.

Price: $79,500.00

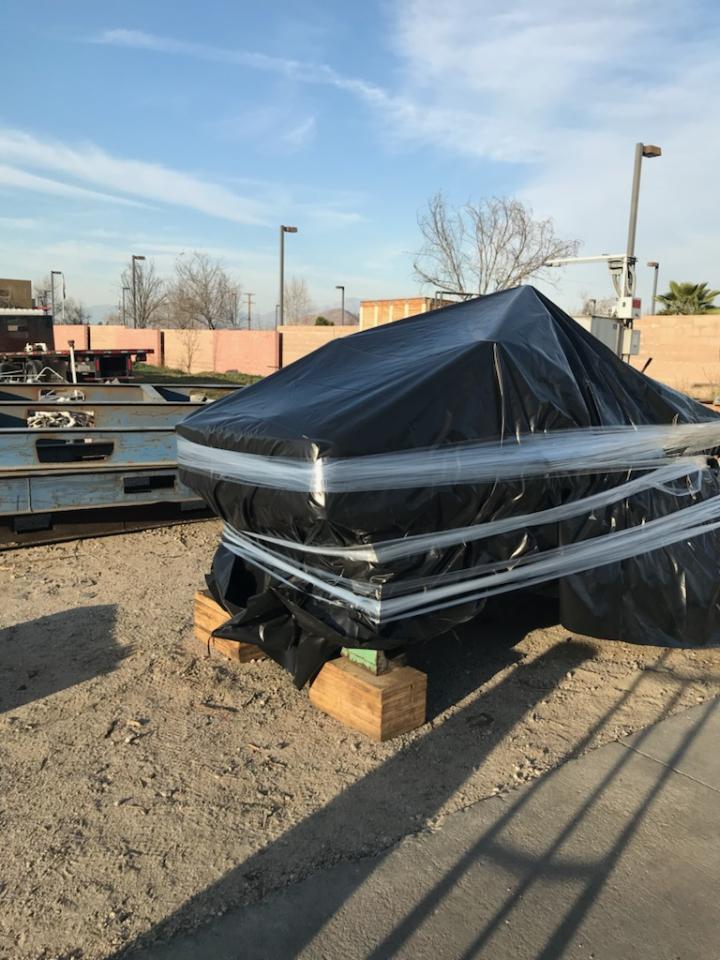

In storage. S. California
