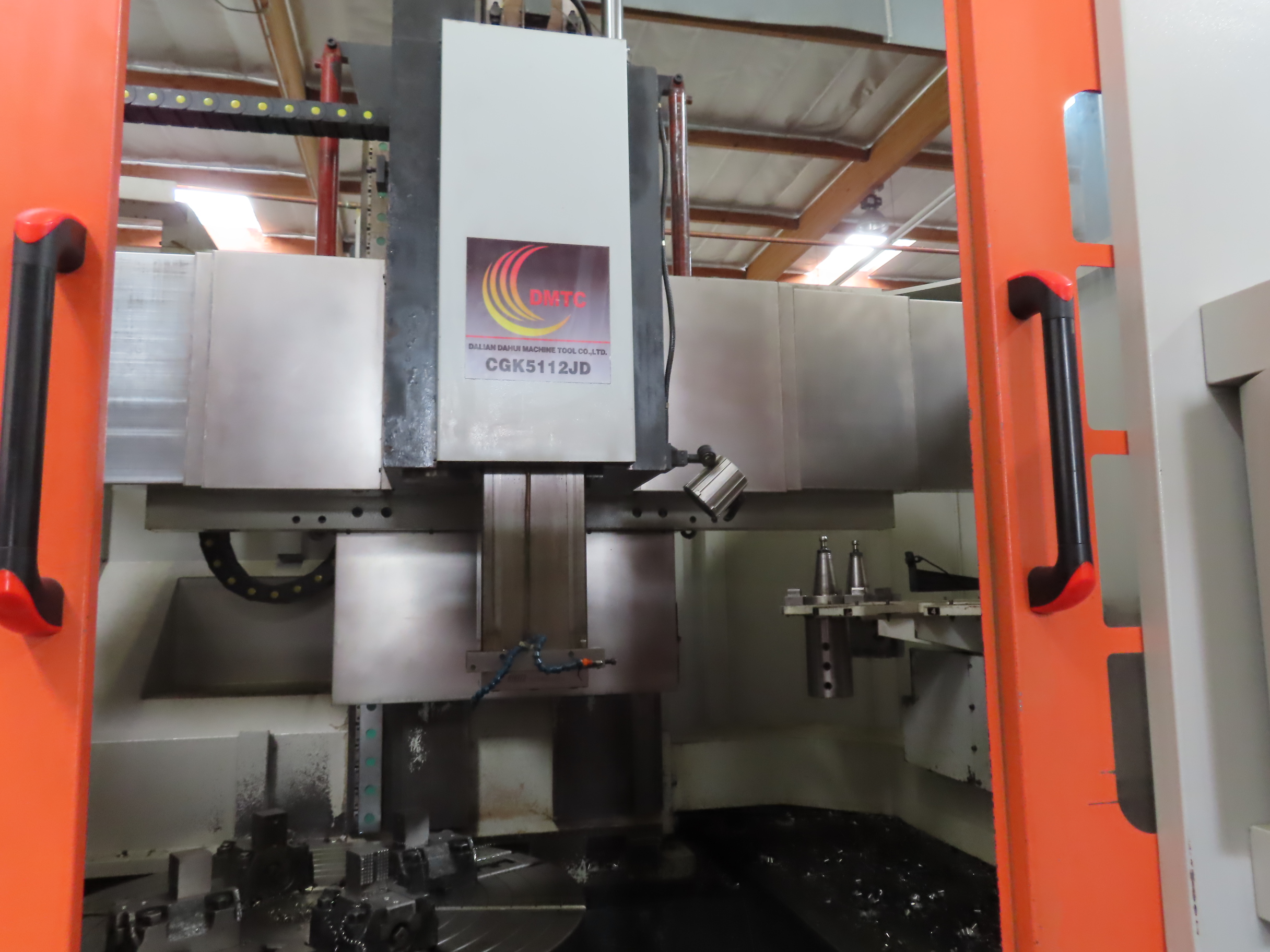

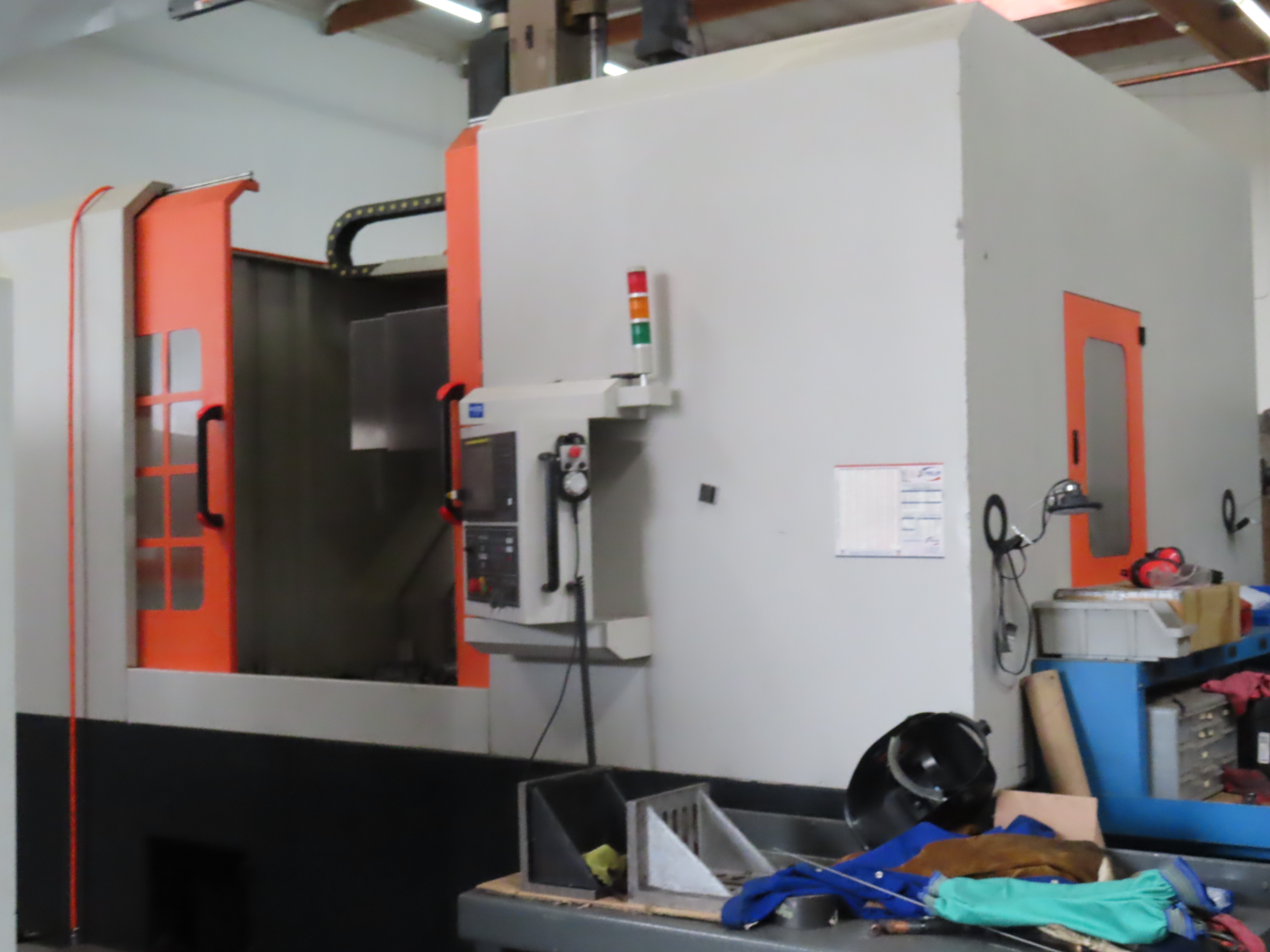

DMTC, DALIAN DAHUI MACHINE TOOL CO., LTD MODEL CGK5112ID

DMTC, DALIAN DAHUI MACHINE TOOL CO., LTD MODEL CGK5112ID

CNC VERTICAL BORING MILL S/N: B12 13739 0

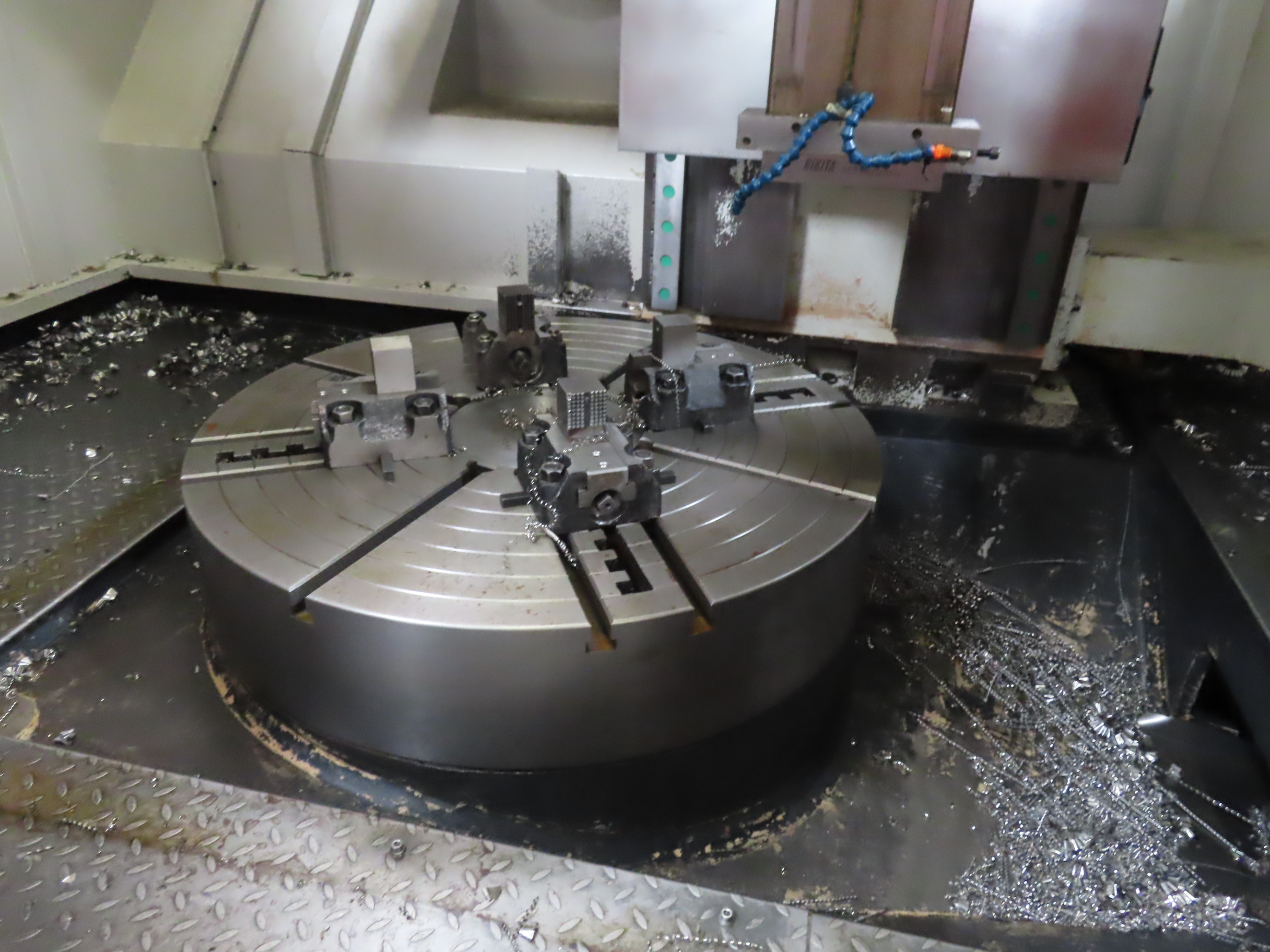

Manual Chuck:  Diameter 1000 mm

Max swing diameter of workpiece: 1200 mm

 Max Machining Diameter: 1200 mm

 Max Machining Height: 1000 mm

 Max Workpiece Weight: Kg 5000

Worktable Speed Step Two Gears Stepless ZF 7 Table speed range r/min 400

Beam Travel:  800 mm

Max torque of worktable:  N 30000

Feeding series Stepless

Feeding range mm/min 0.1—2000

Rest fast moving speed mm/min 5000

X axis Feeding Motor Torque Nm 12

Z axis Feeding Moter Torque Nm 22

Tool Rest Horizontal Travel mm -50—650

Tool Rest Vertical Travel 800 mm

Max cutting force N 2800

Main motor kw 22

CNC Control: Fanuc OiTF

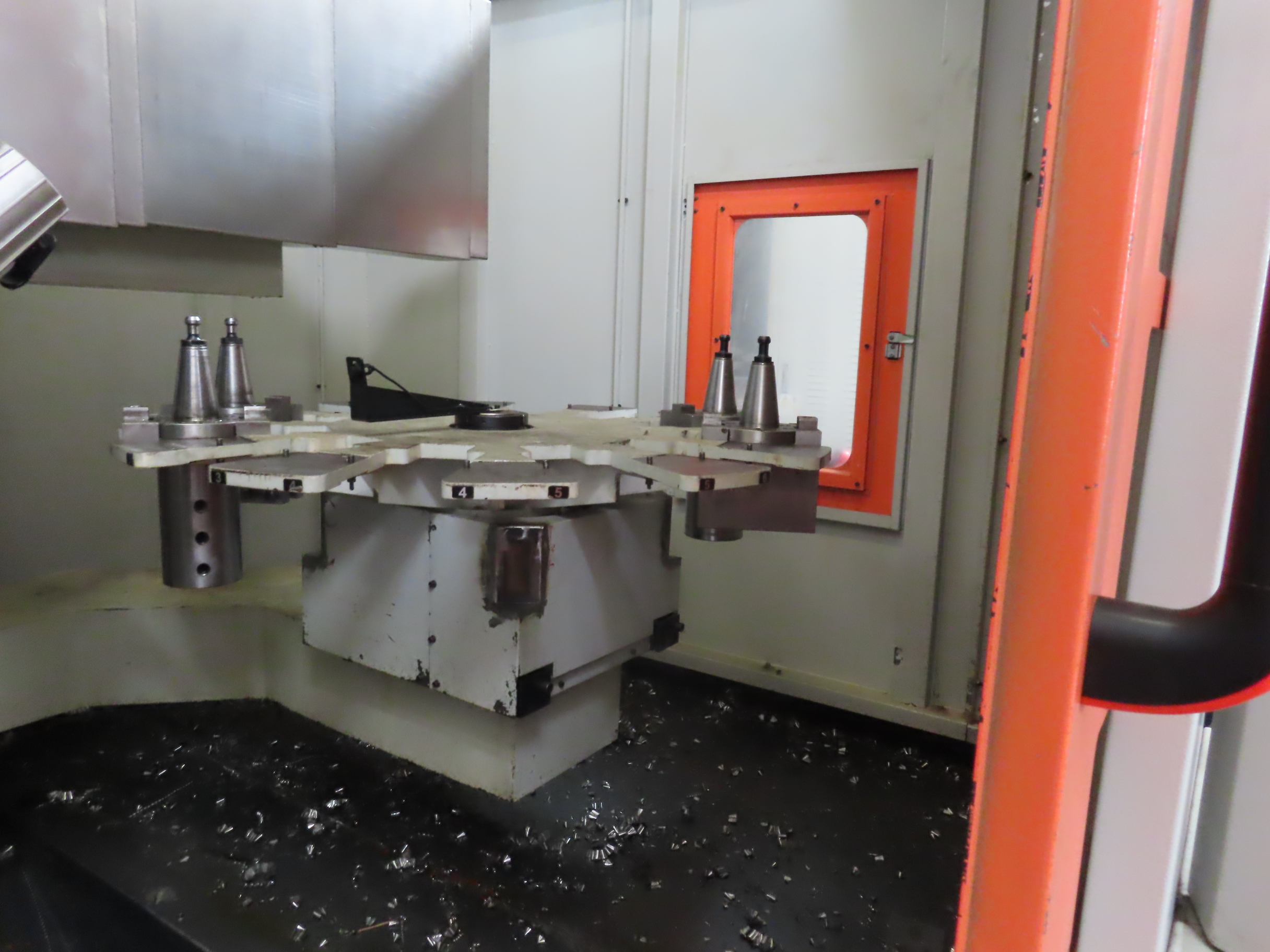

ATC: 8 position

Machine Size（L×W×G）mm 3100×2700×2800

Machine Weight（about） Kg 11000

Under power in S. California

Price: $119,500.00
