Brand: Beckwood
Model: 4P1000F4860 4 Post Pad Forming Press

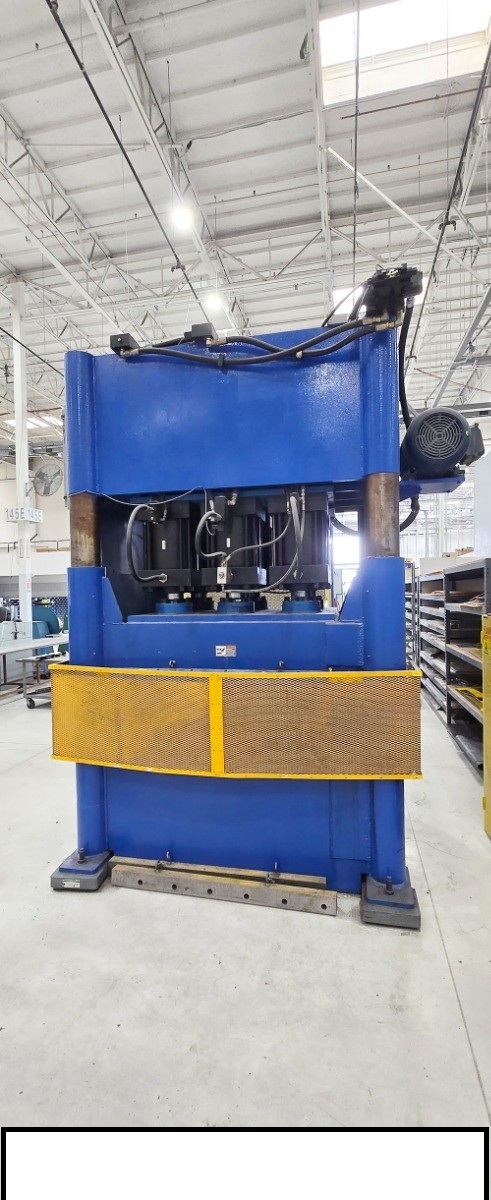

1000 Tons x 8" Used Beckwood Hydraulic 4 Post Pad Forming Press, Mdl. 4P1000F4860, PLC Micrologic 1000 (PC),PLC Programed, Note: Posts Turned Down to 8" Center Section With Side Frame Support Plates (2x) 1-1/2" x 37" x 126 1/4",Ram Cylinders by Parker Hydraulics, Eagle Eye Light Curtain, 3" Thick Urethane (Has Some Splits)- This is the custom Pad that Robinson Helicopter was Using, New Replacement Cost Over $850,000, Great For Hydraulic Press Forming Shallow Parts- Die Samples In Photos Year 2004
Machine No: A7733
DETAILED SPECIFICATION
|
Tonnage
|
1000 Ton
|
|
Stroke
|
8"
|
|
Bed Size
|
3" X 50" X 62"
|
|
Ram Size
|
3" X 54" X 66"
|
|
Day Light Opening
|
8"
|
|
Dimensions ( L x W x H )
|
11'6" X 7.5' X 11'
|
|
Bed Height
|
40"
|
|
Speed
|
81 Down, 16 P, 64 Up
|
|
Time
|
7.9 Down / 10 Up
|
|
PSI
|
3,000
|
|
Current Urethane Pad
|
3" X 48" X 60"
|
Features
PLC Micrologic 1000 (PC)
PLC Programed
Note: Posts Turned Down to 8" Center Section With Side Frame Support Plates (2x) 1-1/2" x 37" x 126 1/4"
Ram Cylinders by Parker Hydraulics
Eagle Eye Light Curtain
3" Thick Eurethane (Has Some Splits)- This is the custom Pad that Robinson was Using
New Replacement Cost Over $850,000
Great For Hydraulic Press Forming Shallow Parts- Die Samples In Photos
Price: $249500.00
