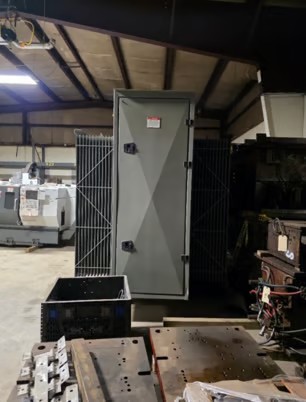

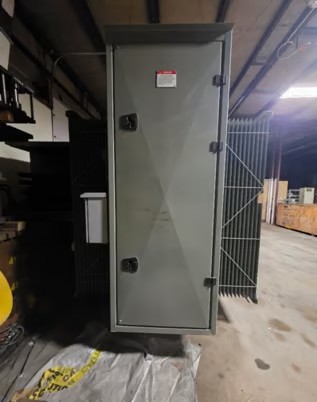

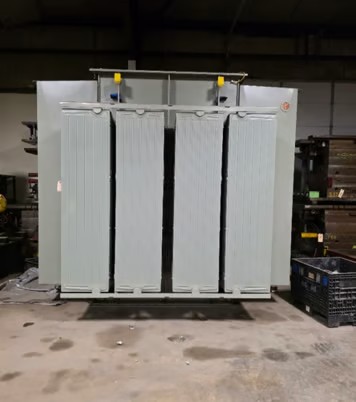

AJAX 7040 KVA Transformer for High Efficiency Induction Melting and Heating

We are offering a specialized, never-used 7040 kVA transformer made by AJAX designed specifically for induction furnace applications. This transformer was custom-manufactured to meet the demanding requirements of high-efficiency induction melting and heating processes.

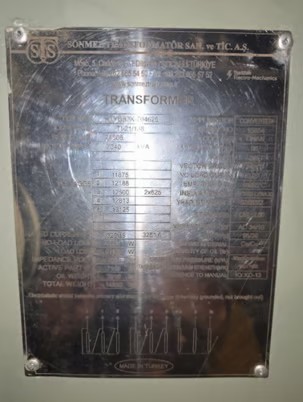

MODEL NO: 12921

OPERATION: 2486-327-110X

RATED POWER: 7040 kVA

VOLTAGES:

HV (kV): 34.5

LV (V): 400

RATED CURRENT (A): 325.14

NO LOAD LOSS (W): 5350

LOAD LOSS (W): 5118.5

IMPEDANCE VOLT: 5.91

APPLICATION: CONVERTER

SERIAL NO: 15654

COOLING: ONAN

FREQUENCY (Hz): 60

PHASE: 3/6

VECTOR GROUP: Dd0Y11

TEMP. RIS O/W (°C): 60/65°C

INSULATION OIL: NITRO LYRAX

DATE OF MANUFACTURE: 02/2022

STANDARD: C57.12.00

INSULATION (HV-LV)kV: AC 34/10

BIL (kVp): 95/30

OIL WEIGHT (kg): 2910

WINDING MATERIAL: Cu
