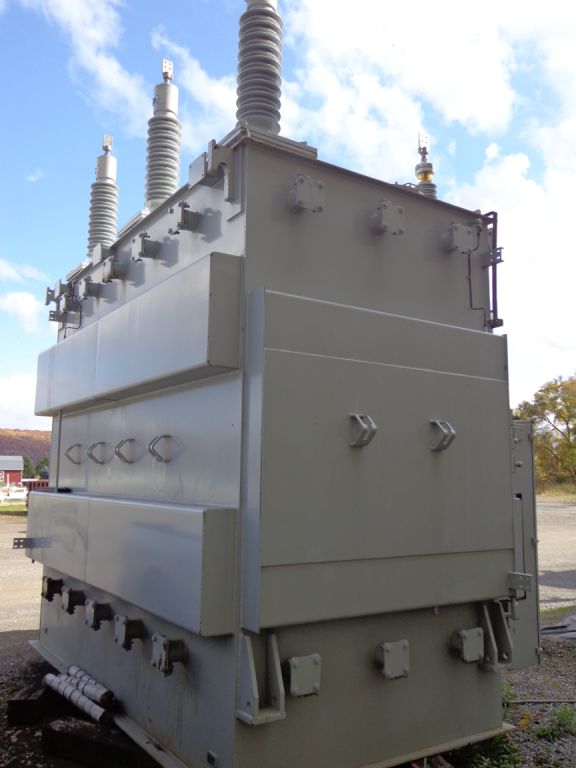

Virginia Transformer with Load Tap Changing 39 / 52 / 65 MVA

Description

Qty - 1

Virginia Transformer with Load Tap Changing
39 / 52 / 65 MVA
Primary:     115,000 GrdY/66,395 with standard straddle no load taps
Secondary:   34,500 Grd Y/19,920 @ 1,088 amps
Load Tap Changing - 33 steps ranging from 30,964 thru 38,041 Volts
3 Phase
60 Hertz
Class ONAN / ONAF / ONAF
Rise 55 / 65 C
Non-PCB Oil
Impedance 7.23 % @ 39 MVA
Continuous Duty
Primary Bushings: TOP Cover Mounted
Secondary Bushings: TOP Cover Mounted
HV and LV Winding Material: COPPER / COPPER
Configuration:  WYE / WYE
Manufactured NEW 2007
NEW SURPLUS

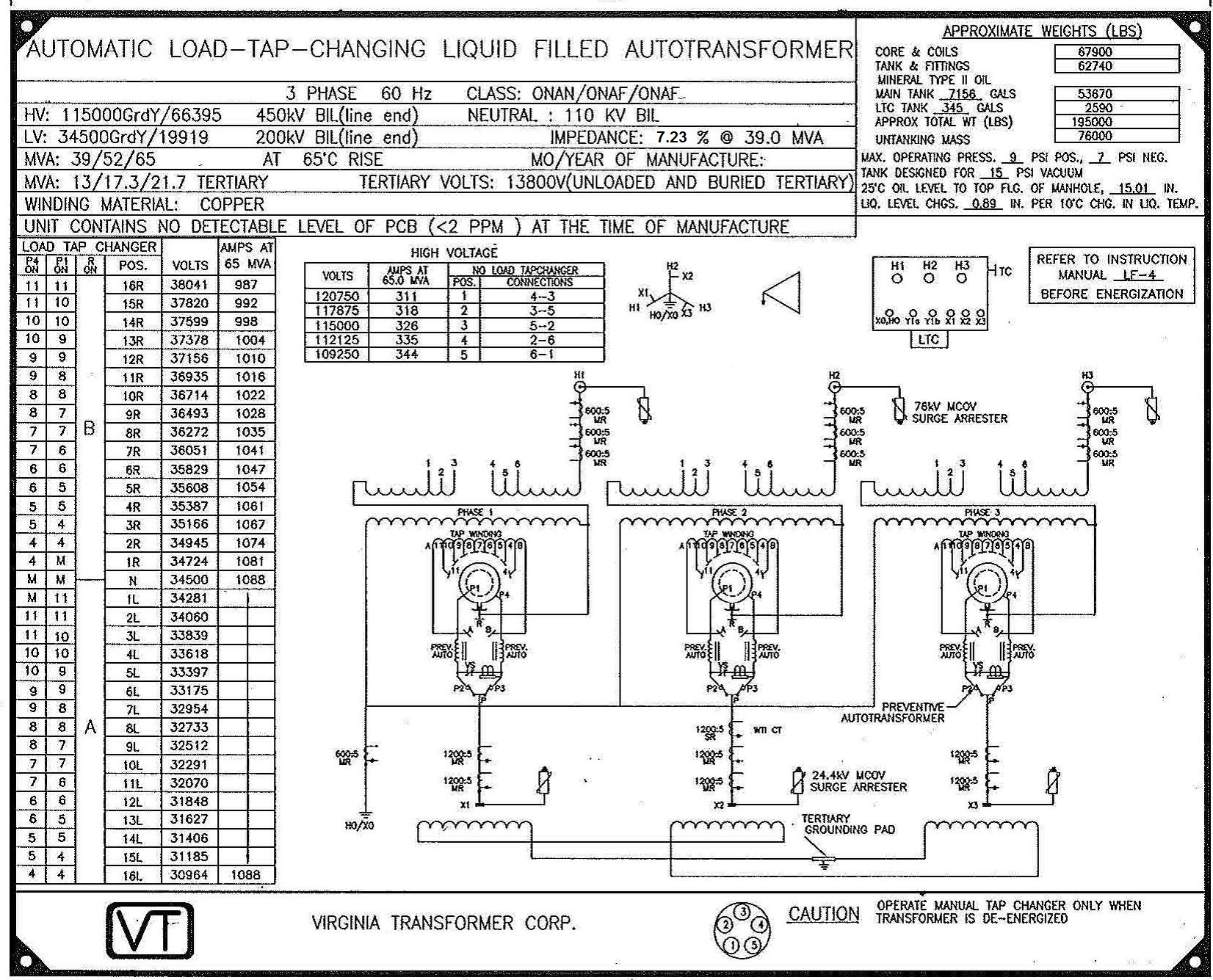

High Voltage Taps
1.  120,750 volts
2.  117,875 volts
3.  115,000 volts
4.  112,125 volts
5.  109,250 volts



Loading Fee: $18,500.00

Trailer 1: Shipping Weight of Main Tank only = 126,000 lbs.
Trailer 2: Shipping Weight of Rads, Bushings, Fans, Brackets, = 20,000 lbs
